Products > Li ion Battery Charger > 24V Li-ion battery charger 29.4V > Travel charger electric outboard motor charger lithium 29.4V 4A charger
Travel charger electric outboard motor charger lithium 29.4V 4A charger
Product name : Travel charger electric outboard motor charger lithium 29.4V 4A charger
Product No. : XSG2944000
             [Next Product]→
Online Inquiry         Email Us

  Details:
 1.UL PSE FCC cUL UKCA SAA KC CE GS certificated travel charger electric outboard motor charger lithium 29.4V 4A charger
29.4V 4A lithium battery charger for the 24V electric outboard motor battery system, the travel charger, easy to use.

2. Electrical Performance：
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1，J61558, J60335
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024，EN55020
EN61000, EN55014
KC Korea K60950-1,K62368-1
SAA/RCM Australia AS/NZS 60335,AS/NZS 61558,AS/NZS 62368













3.Input Feature：
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：3A
Inrush Current： 60A
Efficiency higher than 87%，No-load input power dissipation 0.5W

4.Output Feature：24V electric outboard motor battery charger 29.4V 4A
Charging Status Charging Stage Output current Output voltage LED indicator

Charging		 Constant Current 4A 17.5V-29.4V 红灯
Constant Voltage 4A->0.4A 29.4V 红灯
 Fully charge Trickle Charging 0.4A->0 29.4V 绿灯








5. Charging Curve
29.4V 4A charger
6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

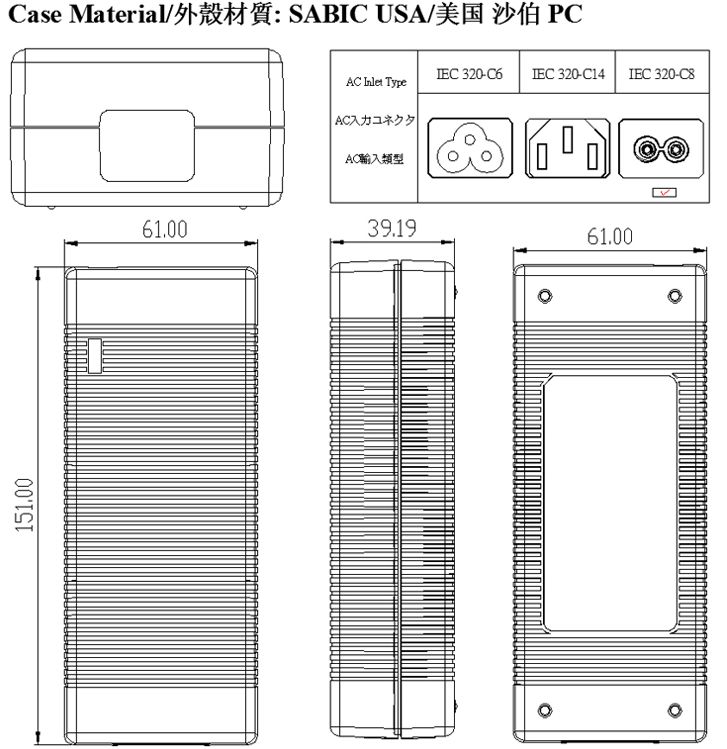

7. Dimensions：L151*W61*H40mm

7. Other 29.4V chargers
MODEL INPUT OUTPUT
VAC W V mA
XSG2940300 100～240 8.8 29.4 300
XSG2940400 100～240 11.8 29.4 400
XSG2940500 100～240 14.7 29.4 500
XSG2940600 100～240 17.6 29.4 600
XSG2940700 100～240 20.6 29.4 700
XSG2940800 100～240 23.5 29.4 800
XSG2940900 100～240 26.5 29.4 900
XSG2941000 100～240 29.4 29.4 1000
XSG2941250 100～240 36.8 29.4 1250
XSG2941500 100～240 44.1 29.4 1500
XSG2941750 100～240 51.5 29.4 1750
XSG2942000 100～240 58.8 29.4 2000
XSG2942500 100～240 73.5 29.4 2500
XSG2943000 100～240 88.2 29.4 3000
XSG2943500 100～240 102.9 29.4 3500
XSG2944000 100～240 117.6 29.4 4000
XSG2944500 100～240 132.3 29.4 4500
XSG2945000 100～240 147.0 29.4 5000
XSG2945500 100～240 161.7 29.4 5500
XSG2946000 100～240 176.4 29.4 6000
XSG2946500 100～240 191.1 29.4 6500
XSG2947000 100～240 205.8 29.4 7000
XSG2948000 100～240 235.2 29.4 8000
XSG2949000 100～240 264.6 29.4 9000
XSG29410000 100～240 294.0 29.4 10000
XSG29415000 100～240 441.0 29.4 15000
XSG29417000 100～240 499.8 29.4 17000
XSG29420000 100～240 588.0 29.4 20000

8. Factory and workshop

Xinsu Global


9. Production test equipment



10. Producton process
production process
11. Exhibitions

Xinsu Global 29.4V 4A electric outboard motor lithium battery charger, the 3 stage battery charger with constant current to constant voltage and trickle current mode.
Multi safetguards: OVP, CVP, SCP, reverse protection (Optional)and Anti-backflow protection .Without compromising battery life, ensure that the battery can be fully charged.
AC DC 29.4V 4A Lithium battery charger with various safety certifications, CB report, UL, cUL, FCC, PSE, CE, GS, SAA, RCM, C-tick, KC, CCC.
Please email us for further details.
