Decorative lighting table light battery chargers 4.2V 12.6V
Product name : Decorative lighting table light battery chargers 4.2V 12.6V
Product No. : XSG1261500
             [Next Product]→
Online Inquiry         Email Us

  Details:
universal 12.6V 1.5A battery charger
1. Decorative lighting table light battery chargers 4.2V 12.6V, Xinsu Global provide chargers for some well-known lighting design and manufasturing brands. universal chargers with interchangeable wall plugs(US, EU, UK, AU, IN, AR, BR, ZA, KR plugs) can be used for the most countries.


2. Electrical Performance:
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1,J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024,EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:0.6A
Inrush Current: 35A
Efficiency higher than 78%,No-load input power dissipation 0.3W


4.Output Feature:Interchangeable wall plug li-ion battery 12.6V 1.5A, UL, cUL, FCC, PSE,CE, GS, SAA, KC, CCC certifications
Charging Status Charging Stage Output current Output voltage LED indicator

Charging
Constant Current 1.5A 7.5V-12.6V 红灯
Constant Voltage 1.5A->0.2A 12.6V 红灯
 Fully charge Trickle Charging 0.2A->0 12.6V 绿灯








5. Charging Curve
Table light charger
6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

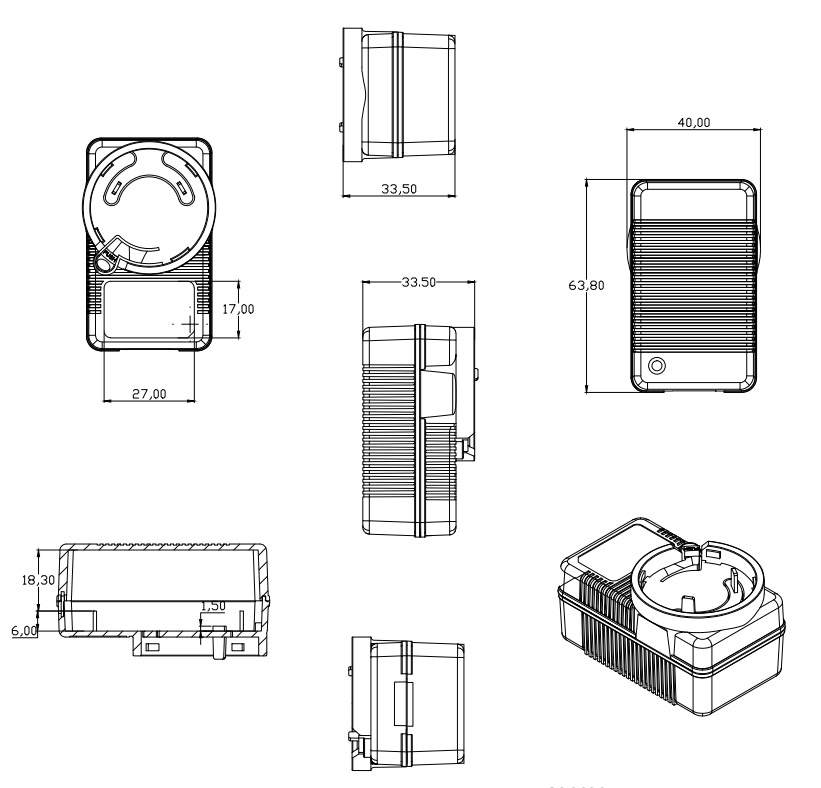

7. Dimensions:L63.9*W37.7*H27.9mm

8. Other 12.6V chargers
MODEL INPUT OUTPUT
VAC W V mA
XSG1260300 100~240 3.8 12.6 300
XSG1260400 100~240 5.0 12.6 400
XSG1260500 100~240 6.3 12.6 500
XSG1260600 100~240 7.6 12.6 600
XSG1260700 100~240 8.8 12.6 700
XSG1260800 100~240 10.1 12.6 800
XSG1260900 100~240 11.3 12.6 900
XSG1261000 100~240 12.6 12.6 1000
XSG1261200 100~240 15.1 12.6 1200
XSG1261500 100~240 18.9 12.6 1500
XSG1261800 100~240 22.7 12.6 1800
XSG1262000 100~240 25.2 12.6 2000
XSG1262500 100~240 31.5 12.6 2500
XSG1263000 100~240 37.8 12.6 3000
XSG1263500 100~240 44.1 12.6 3500
XSG1264000 100~240 50.4 12.6 4000
XSG1264500 100~240 56.7 12.6 4500
XSG1265000 100~240 63.0 12.6 5000
XSG1265500 100~240 69.3 12.6 5500
XSG1266000 100~240 75.6 12.6 6000
XSG1266500 100~240 81.9 12.6 6500
XSG1267000 100~240 88.2 12.6 7000
XSG1267500 100~240 94.5 12.6 7500
XSG1268000 100~240 100.8 12.6 8000
XSG1268500 100~240 107.1 12.6 8500
XSG1269000 100240 113.4 12.6 9000
XSG1269500 100~240 119.7 12.6 9500
XSG12610000 100~240 126.0 12.6 10000
XSG12611000 100-240 138.6 12.6 11000

9. Factory and workshop

Xinsu Global


10. Production test equipment



11. Producton process
production process
12. Exhibitions

Ultra lightweight charging brings you infinite convenience! We are proud to launch the new 12.6V1.5A lithium battery charger! This charger not only has excellent charging efficiency, but also allows for fast charging, saving you time and worry. Its compact design makes it easy to carry around, whether it's for travel, business trips, or charging at home. We have also added multiple intelligent protection systems to ensure the safe and reliable charging process, allowing you to use it with complete confidence. The simple and easy to operate charger interface allows you to start charging without the need for complex settings. Not only that, our designers also equipped the charger with user-friendly indicator lights, allowing you to know the charging status of the battery at a glance.
Xinsu Global table light charger 12.6V 1.5A Model XSG1261500, high quality chargers with full safety certificates can be used for the global business,  If you need the table light chargers, please contact us anytime.
