3pin plug 24V 10A lead-acid battery chargers
Product name : 3pin plug 24V 10A lead-acid battery chargers
Product No. : XSG29210000MM
             [Next Product]→
Online Inquiry         Email Us

  Details:
 1.CB UL CUL FCC PSE CE GS SAA KC 3pin plug 24V 10A lead-acid battery chargers
29.4V 10A charger
24V10A AC charger adapter used for 24V lead-acid battery pack, battery power tools, robot, electric scooter bike, fast charger

2. Electrical Performance:
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1,J61558, J60335
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024,EN55020
EN61000, EN55014
KC Korea K60950-1,K62368-1
SAA/RCM Australia AS/NZS 60950,AS/NZS 61558,AS/NZS 62368,AS/NZS 60335













3.Input Feature:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:3A
Inrush Current: 60A
Efficiency higher than 87%,No-load input power dissipation 0.5W


4.Output Feature:24V10A lead-acid battery ac charger adapter with 2 color LED indicator
Charging Status Charging Stage Output current Output voltage LED indicator

Charging
Constant Current 10A 17.5V-29.4V 红灯
Constant Voltage 10A->3A 29.4V 红灯
 Fully charge Trickle Charging 3A->0 29.4V 绿灯








5. Charging Curve
24V 7A charger
6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

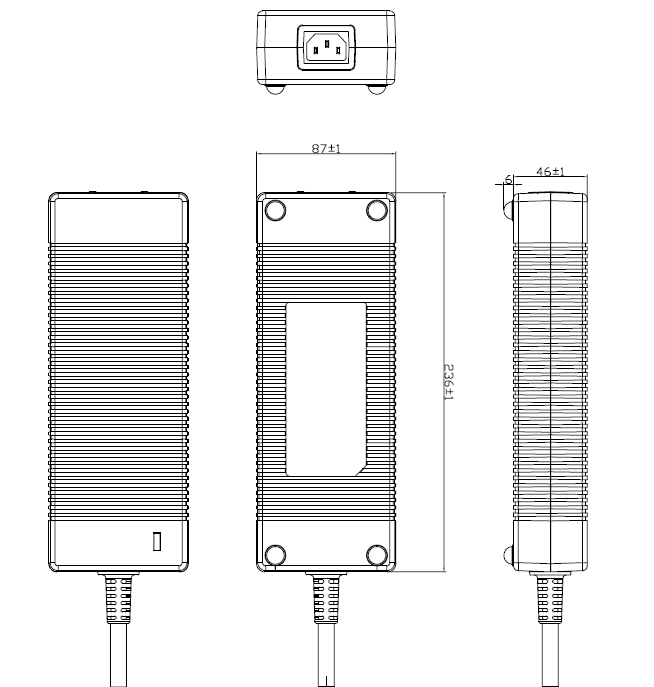

7. Dimensions:L236*W87*H46mm
29.4V 10A AC charger


8. Factory and workshop

Xinsu Global


9. Production test equipment



10. Producton process
production process
11. Exhibitions

24V 10A lead-acid battery charger 29.2V 10A charger, The two-color LED indicator shows the charging status. With multiple protection mechanisms, over-current protection, over-voltage protection, short-circuit protection, polarity protection and pre-charging function(Optional), MCU control. Charging is fast, safe and reliable. It has UL, cUL, FCC, PSE, CE, GS, KC, CCC, SAA and other international safety certifications.
