Products > Li ion Battery Charger > 37V Li-ion battery charger 42V > UL CE PSE KC SAA certificated 42V 4A E bike battery charger adapter
UL CE PSE KC SAA certificated 42V 4A E bike battery charger adapter
UL CE PSE KC SAA certificated 42V 4A E bike battery charger adapter UL CE PSE KC SAA certificated 42V 4A E bike battery charger adapter UL CE PSE KC SAA certificated 42V 4A E bike battery charger adapter UL CE PSE KC SAA certificated 42V 4A E bike battery charger adapter
Product name : UL CE PSE KC SAA certificated 42V 4A E bike battery charger adapter
Product No. : XSG4204000
←[Previous Product]              [Next Product]→
Online Inquiry

  Details:
 1. UL CE PSE KC SAA certificated 42V 4A E bike battery charger adapter：
42V 4A Lithium battery charger adapter used for 37V 10S li-ion battery pack, electric scooter, electric wheelchair, Portable energy storage equipments.etc

2. Electrical Performance：
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1，J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024，EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950
PSB Singapore IEC-61558-2-16














3.Input Feature：
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：1.3A
Inrush Current： 60A
Efficiency higher than 87%，No-load input power dissipation 0.5W

4.Output Feature：Output 42 volt 4 amp Li-ion battery AC charger adapter
Charging Status Charging Stage Output current Output voltage LED indicator

Charging		 Constant Current 4A 25V-42V 红灯
Constant Voltage 4A->0.4A 42V 红灯
 Fully charge Trickle Charging 0.4A->0 42V 绿灯

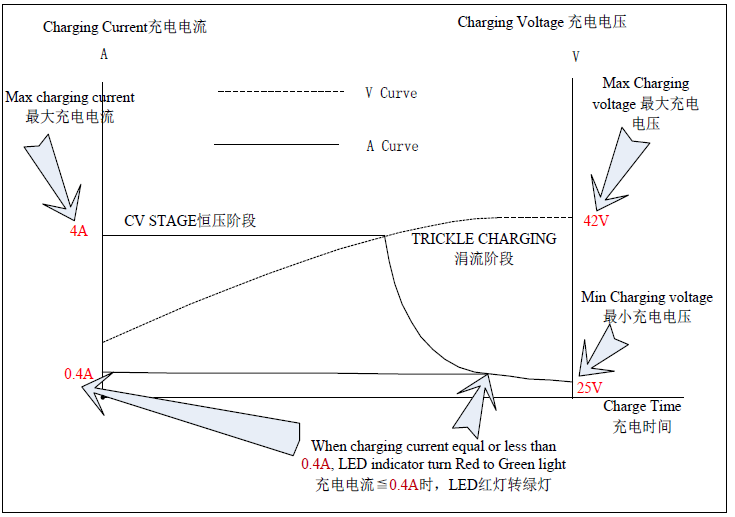

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional), Anti-backflow protection


7. Dimensions：L176*W80*H47mm

8.Other 42V battery chargers
MODEL INPUT OUTPUT
VAC W V mA
XSG4200300 100～240 12.6 42 300
XSG4200400 100～240 16.8 42 400
XSG4200500 100～240 21.0 42 500
XSG4200600 100～240 25.2 42 600
XSG4200700 100～240 29.4 42 700
XSG4200800 100～240 33.6 42 800
XSG4200900 100～240 37.8 42 900
XSG4201000 100～240 42.0 42 1000
XSG4201250 100～240 52.5 42 1250
XSG4201500 100～240 63.0 42 1500
XSG4201750 100～240 73.5 42 1750
XSG4202000 100～240 84.0 42 2000
XSG4202250 100～240 94.5 42 2250
XSG4202500 100～240 105.0 42 2500
XSG4203000 100～240 126.0 42 3000
XSG4203500 100～240 147.0 42 3500
XSG4204000 100～240 168.0 42 4000
XSG4204500 100～240 189.0 42 4500
XSG4205000 100～240 210.0 42 5000
