1.UL PSE CE GS SAA CCC Lithium 14.4V 4A 5A 6A LIFePO4 power supply battery charger adapter SAE connector
14.4V 4A 5A 6A LFP battery LiFePO4 charger used for the 4s LFP battery pack, 2 colour LED indicator shows the charging status. multi protection OVP, OCP, SCP, polarity reverse protection(Optional)
2. Electrical Performance:
Certificated by the safety certifications below:
Certifications |
Country |
Safety Standards |
UL/CUL |
USA/CA |
UL/CSA60950-1,UL/CSA62368-1 |
LVD/GS |
Germany |
EN60950, EN62368
EN61558, EN60335 |
PSE |
Japan |
J-60950-1,J61558 |
FCC |
USA |
FCC Part 15 Sub-part B |
CE EMC |
Europe |
EN55032, EN55024,EN55020
EN61000, EN55014 |
KC |
Korea |
K60950-1 |
SAA/RCM |
Australia |
AS/NZS 60950 |
UKCA |
United Kingdom |
BS EN 62368-1 |
3.Input Feature:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:1.3A
Inrush Current: 60A
Efficiency higher than 87%,No-load input power dissipation 0.5W
4.Output Feature:14.4V5A 3S LFP battery LiFePO4 charger,2 color LED indicator, LED turn red to green when fully charge
Charging Status |
Charging Stage |
Output current |
Output voltage |
LED indicator |
Charging |
Constant Current |
5A |
6V-14.6V |
红灯 |
Constant Voltage |
5A->0.5A |
14.6V |
红灯 |
Fully charge |
Trickle Charging |
0.5A->0 |
14.6V |
绿灯 |

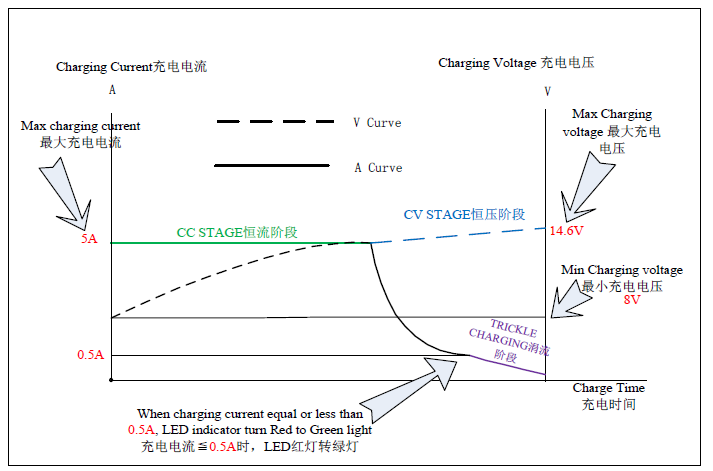

5. Charging Curve
6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

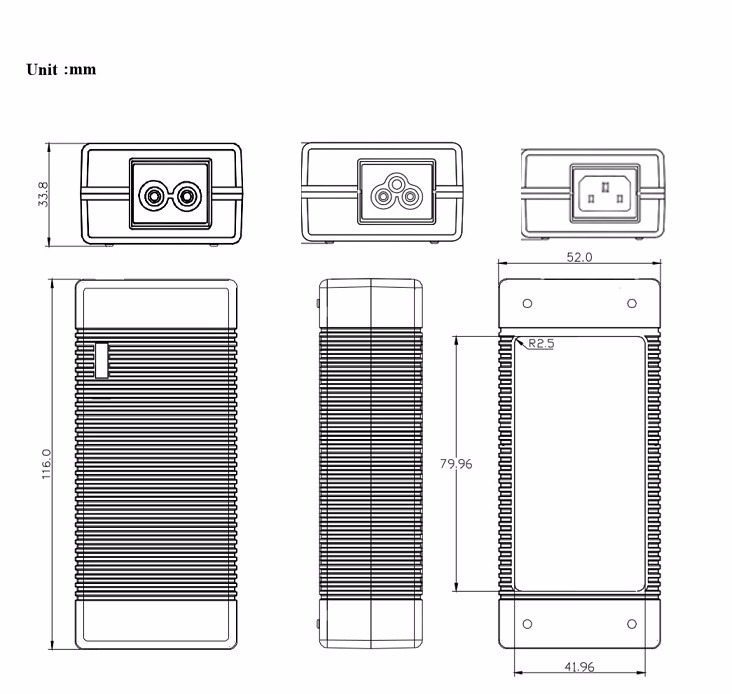

7. Dimensions:L116*W52*H34mm

8. Other 14.6V battery chargers
MODEL |
INPUT |
OUTPUT |
VAC |
W |
V |
mA |
XSG1460300 |
100~240 |
4.4 |
14.6 |
300 |
XSG1460400 |
100~240 |
5.8 |
14.6 |
400 |
XSG1460500 |
100~240 |
7.3 |
14.6 |
500 |
XSG1460600 |
100~240 |
8.8 |
14.6 |
600 |
XSG1460700 |
100~240 |
10.2 |
14.6 |
700 |
XSG1460800 |
100~240 |
11.7 |
14.6 |
800 |
XSG1460900 |
100~240 |
13.1 |
14.6 |
900 |
XSG1461000 |
100~240 |
14.6 |
14.6 |
1000 |
XSG1461500 |
100~240 |
21.9 |
14.6 |
1500 |
XSG1462000 |
100~240 |
29.2 |
14.6 |
2000 |
XSG1462500 |
100~240 |
36.5 |
14.6 |
2500 |
XSG1463000 |
100~240 |
43.8 |
14.6 |
3000 |
XSG1463500 |
100~240 |
51.1 |
14.6 |
3500 |
XSG1464000 |
100~240 |
58.4 |
14.6 |
4000 |
XSG1464450 |
100~240 |
65.0 |
14.6 |
4450 |
XSG1464500 |
100~240 |
65.7 |
14.6 |
4500 |
XSG1465000 |
100~240 |
73.0 |
14.6 |
5000 |
XSG1465500 |
100~240 |
80.3 |
14.6 |
5500 |
XSG1466000 |
100~240 |
87.6 |
14.6 |
6000 |
XSG1466500 |
100~240 |
94.9 |
14.6 |
6500 |
XSG1467000 |
100~240 |
102.2 |
14.6 |
7000 |
XSG1467500 |
100~240 |
109.5 |
14.6 |
7500 |
XSG1468000 |
100~240 |
116.8 |
14.6 |
8000 |
XSG1468500 |
100~240 |
124.1 |
14.6 |
8500 |
XSG1469000 |
100~240 |
131.4 |
14.6 |
9000 |
XSG1469500 |
100~241 |
138.7 |
14.6 |
9500 |
XSG14610000 |
100~240 |
146.0 |
14.6 |
10000 |
XSG14611000 |
100-240 |
160.6 |
14.6 |
11000 |

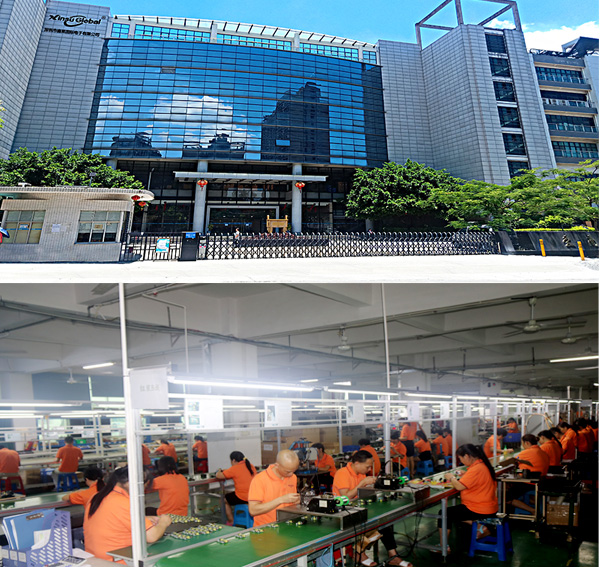

9. Factory and workshop

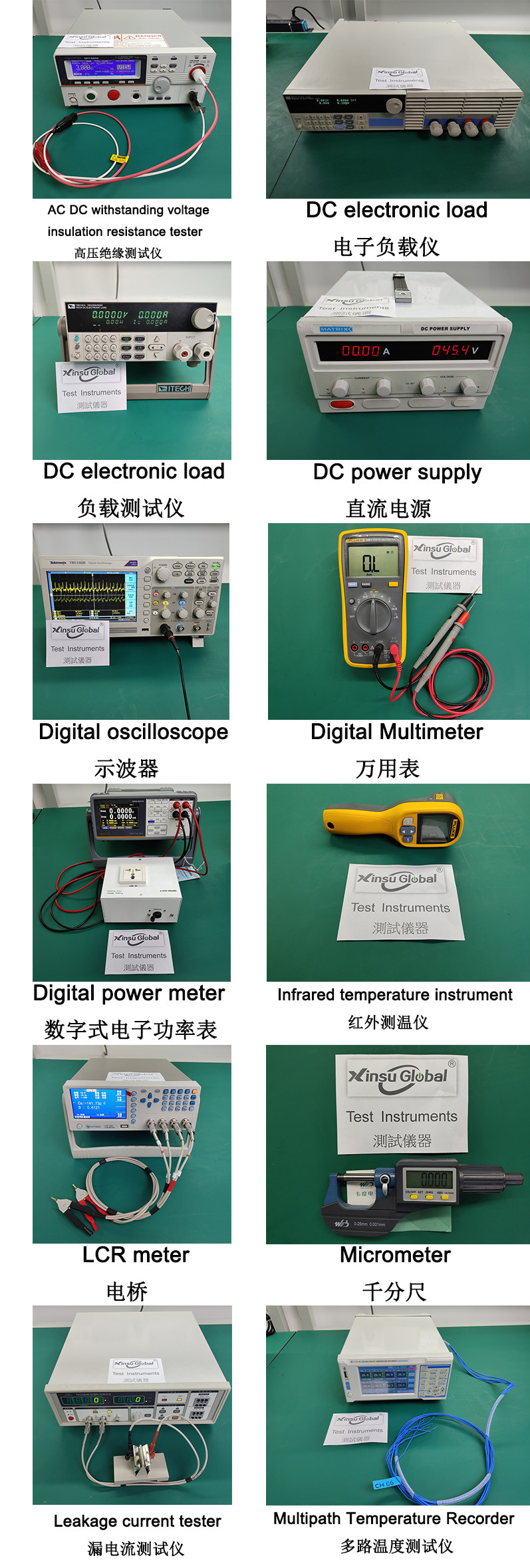

10. Production test equipment

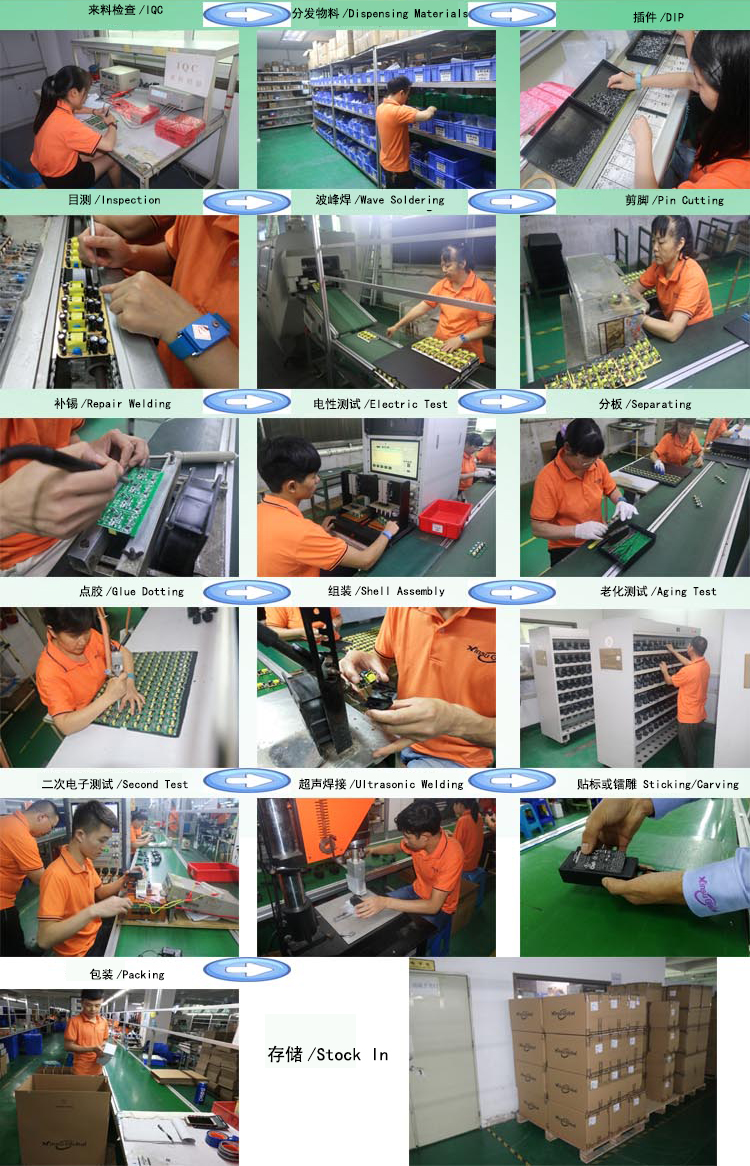

11. Producton process

12. Exhibitions

UL PSE CE GS SAA CCC 12V Lithium 14.4V 4A 5A 6A LIFePO4 power supply battery charger adapter SAE connector.Constant current to constant voltage and trickle current mode.
Multi safetguards: OVP, CVP, SCP, reverse protection (Optional)and Anti-backflow protection .Without compromising battery life, ensure that the battery can be fully charged.
12V Lithium 14.4V 4A 5A 6A LIFePO4 power supply battery charger adapter with various safety certifications, CB report, UL, cUL, FCC, PSE, CE, GS, SAA, RCM, C-tick,KC.
If you are interested in it or have more questions, just please send us your inquiry letter:
|
