Xinsu Global Electronic Co., Limited

Products > LiFePO4 Battery Charger > 12.8V LiFePO4 battery charger 14.6V > UL FCC CE SAA PSE certification listed 12.8V LiFePO4 battery ac charger 7A
UL FCC CE SAA PSE certification listed 12.8V LiFePO4 battery ac charger 7A
UL FCC CE SAA PSE certification listed 12.8V LiFePO4 battery ac charger 7A UL FCC CE SAA PSE certification listed 12.8V LiFePO4 battery ac charger 7A UL FCC CE SAA PSE certification listed 12.8V LiFePO4 battery ac charger 7A
Product name : UL FCC CE SAA PSE certification listed 12.8V LiFePO4 battery ac charger 7A
Product No. : XSG1467000
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 1.UL FCC CE SAA PSE certification listed 12.8V LiFePO4 battery ac charger 7A
Global safety certification 14.6V 7A used for 4s LiFePO4 battery pack, battery power tools.etc,
Taiwan capacitors, Germany MOS, Pure PC materials V0 fire-proof.3years warranty



2. Electrical Performance:
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1,J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024,EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-53Hz
Input Current:3A
Inrush Current: 60A
Efficiency higher than 87%,No-load input power dissipation 0.5W


4.Output Feature:14.6V7A LiFePO4 battery ac charger adapter
Charging Status Charging Stage Output current Output voltage LED indicator

Charging
Constant Current 7A 8V-14.6V 红灯
Constant Voltage 7A->0.7A 14.6V 红灯
 Fully charge Trickle Charging 0.7A->0 14.6V 绿灯

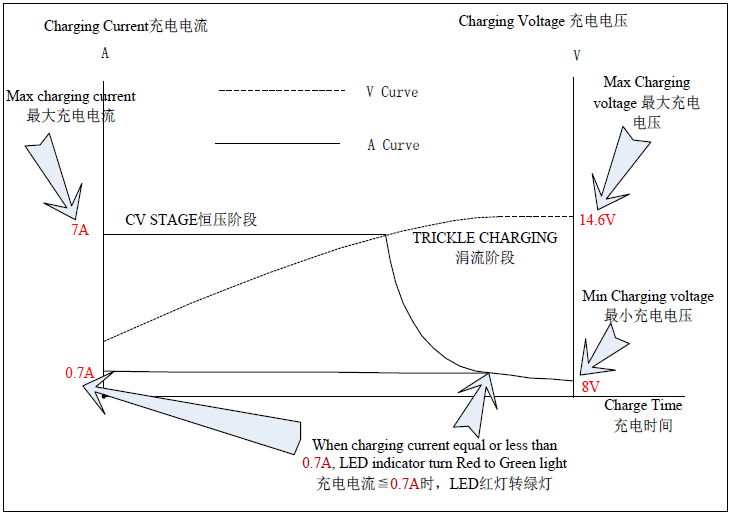

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)


7. Dimensions:L151*W61*H40mm
