Products > Power Adapter > > XSG2405000 120W 24V 5A switching power supply adapter

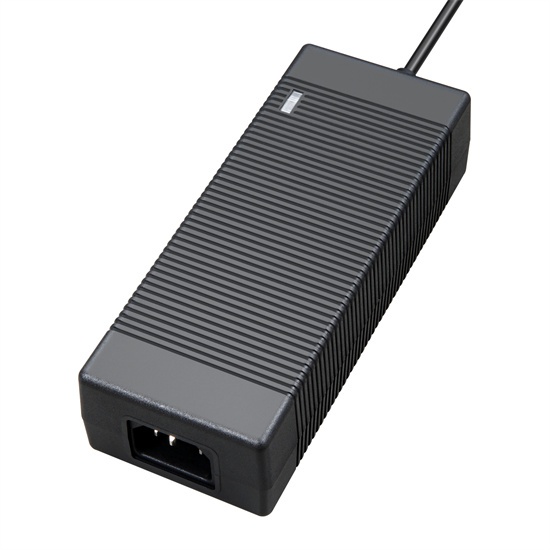

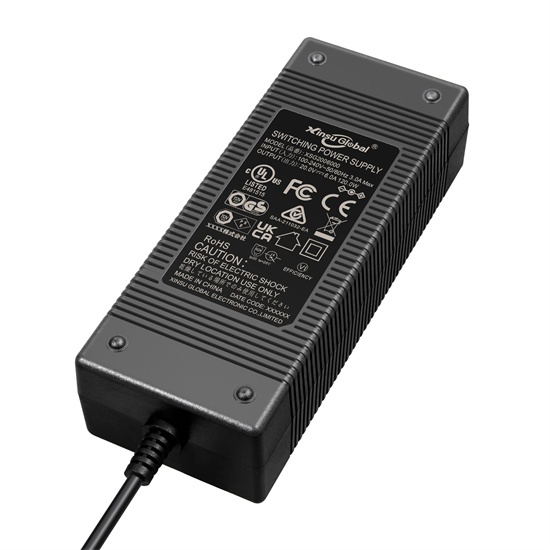

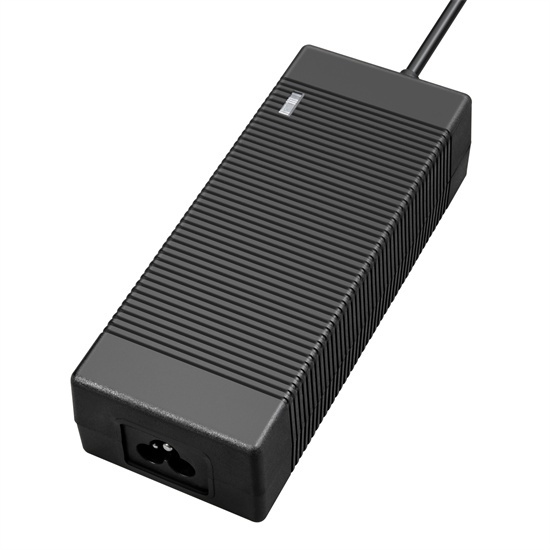

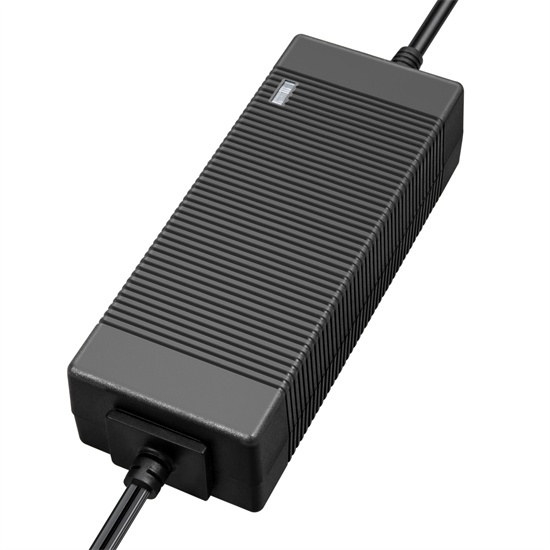

Product name : XSG2405000 120W 24V 5A switching power supply adapter

Product No. : XSG2405000

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

1.Power Supply Description

XSG2405000 120W 24V 5A switching power supply adapter constant voltage output with full global safety certificationsd

2. Electrical Performance：
Certificated by the safety certifications below:

Certifications	Country	Safety Standards
UL/CUL	USA/CA	UL/CSA60950-1,UL/CSA62368-1
LVD/GS	Germany	EN60950, EN62368 EN61558, EN60335
PSE	Japan	J-60950-1，J61558
FCC	USA	FCC Part 15 Sub-part B
CE EMC	Europe	EN55032, EN55024，EN55020 EN61000, EN55014
KC	Korea	K60950-1
SAA/RCM	Australia	AS/NZS 60950

3.Input Feature：
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：3A
Inrush Current： 60A
Efficiency higher than 88%，No-load input power dissipation 0.21W

4.Output Feature：100-240 AC input to DC 24V 5A switching power supply adapter

5. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

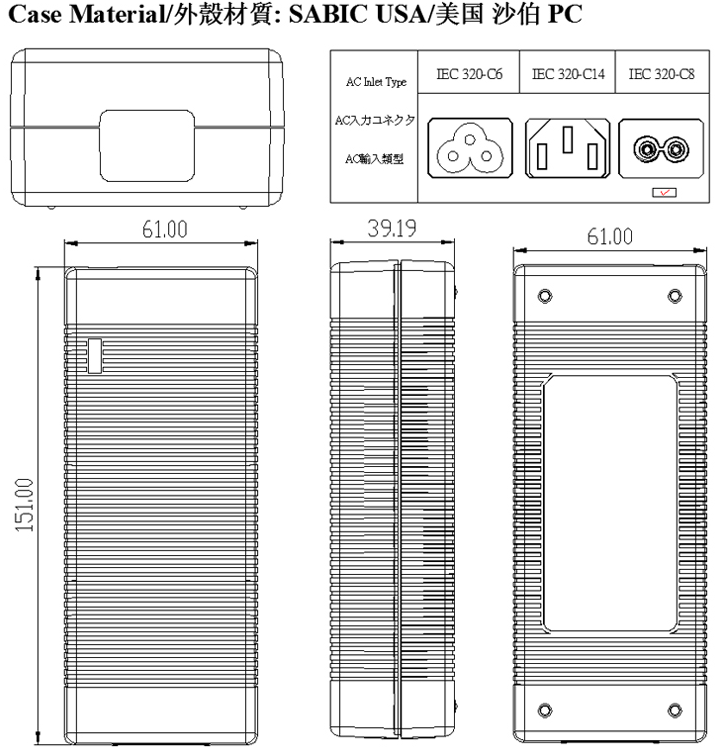

7. Dimensions：L151*W61*H40mm

7.Other 24V power supply

MODEL	INPUT	OUTPUT
MODEL	VAC	W	V	mA
XSG2400300	100～240	7.2	24	300
XSG2400400	100～240	9.6	24	400
XSG2400500	100～240	12.0	24	500
XSG2400600	100～240	14.4	24	600
XSG2400700	100～240	16.8	24	700
XSG2400800	100～240	19.2	24	800
XSG2400900	100～240	21.6	24	900
XSG2401000	100～240	24.0	24	1000
XSG2401200	100～240	28.8	24	1200
XSG2401250	100～240	30.0	24	1250
XSG2401500	100～240	36.0	24	1500
XSG2401750	100～240	42.0	24	1750
XSG2402000	100～240	48.0	24	2000
XSG2402100	100～240	50.4	24	2100
XSG2402500	100～240	60.0	24	2500
XSG2402700	100～240	64.8	24	2700
XSG2403000	100～240	72.0	24	3000
XSG2403250	100～240	78.0	24	3250
XSG2403500	100～240	84.0	24	3500
XSG2404000	100～240	96.0	24	4000
XSG2404500	100～240	108.0	24	4500
XSG2405000	100～240	120.0	24	5000
XSG2405500	100-240	132.0	24	5500
XSG2406000	100～240	144.0	24	6000
XSG2406250	100～240	150.0	24	6250
XSG2406500	100～240	156.0	24	6500
XSG2407000	100～240	168.0	24	7000
XSG2407500	100～240	180.0	24	7500
XSG2408000	100～240	192.0	24	8000
XSG2408330	100～240	199.9	24	8330
XSG2408500	100～240	204.0	24	8500
XSG2409000	100～240	216.0	24	9000
