LiFePO4 lithium 15V 4A 5A golf trolley buggy charger
Product name : LiFePO4 lithium 15V 4A 5A golf trolley buggy charger
Product No. : XSG1504000
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 1. LiFePO4 lithium 15V 4A 5A golf trolley buggy charger:
LiFePO4 lithium 15V 4A 5A golf trolley buggy charger used for 4s 12.8V LiFePO4 battery pack, golf trolley buggy, Emergency lighting system,  portable power station.etc

2. Electrical Performance:
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1,J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024,EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:1.3A
Inrush Current: 60A
Efficiency higher than 87%,No-load input power dissipation 0.5W


4.Output Feature:LiFePO4 lithium 15V 4A 5A golf trolley buggy charger, LED will turn red to Green when fully charge.
Charging Status Charging Stage Output current Output voltage LED indicator

Charging
Constant Current 4A 8V-14.6V 红灯
Constant Voltage 4A->0.4A 14.6V 红灯
 Fully charge Trickle Charging 0.4A->0 14.6V 绿灯

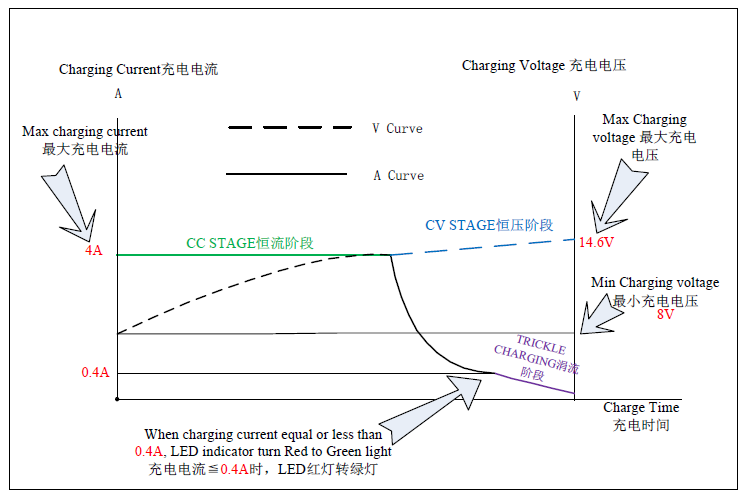

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)


7. Dimensions:L116*W52*H34mm

8.Other 14.6V battery chargers
MODEL INPUT OUTPUT
VAC W V mA
XSG1460300 100~240 4.4 14.6 300
XSG1460400 100~240 5.8 14.6 400
XSG1460500 100~240 7.3 14.6 500
XSG1460600 100~240 8.8 14.6 600
XSG1460700 100~240 10.2 14.6 700
XSG1460800 100~240 11.7 14.6 800
XSG1460900 100~240 13.1 14.6 900
XSG1461000 100~240 14.6 14.6 1000
XSG1461500 100~240 21.9 14.6 1500
XSG1462000 100~240 29.2 14.6 2000
XSG1462500 100~240 36.5 14.6 2500
XSG1463000 100~240 43.8 14.6 3000
XSG1463500 100~240 51.1 14.6 3500
XSG1464000 100~240 58.4 14.6 4000
XSG1464450 100~240 65.0 14.6 4450
XSG1464500 100~240 65.7 14.6 4500
XSG1465000 100~240 73.0 14.6 5000
XSG1465500 100~240 80.3 14.6 5500
XSG1466000 100~240 87.6 14.6 6000
XSG1466500 100~240 94.9 14.6 6500
XSG1467000 100~240 102.2 14.6 7000
XSG1467500 100~240 109.5 14.6 7500
XSG1468000 100~240 116.8 14.6 8000
XSG1468500 100~240 124.1 14.6 8500
XSG1469000 100~240 131.4 14.6 9000
XSG1469500 100~241 138.7 14.6 9500
XSG14610000 100~240 146.0 14.6 10000
XSG14611000 100-240 160.6 14.6 11000

9. Factory and workshop

Xinsu Global


10. Production test equipment



11. Producton process
production process
12. Exhibitions

LiFePO4 lithium 15V 4A 5A golf trolley buggy charger
Please email us for further details!
