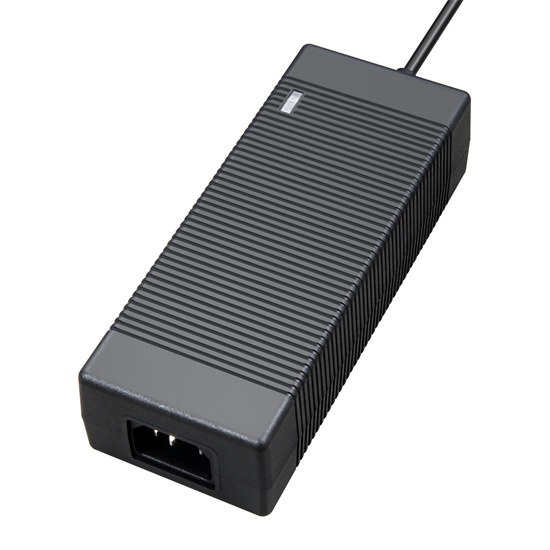

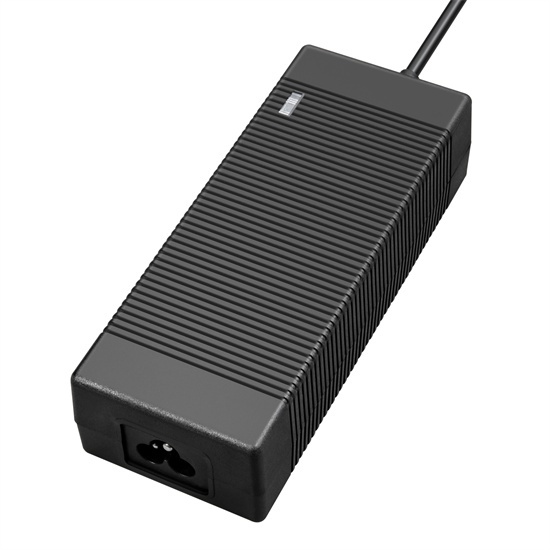

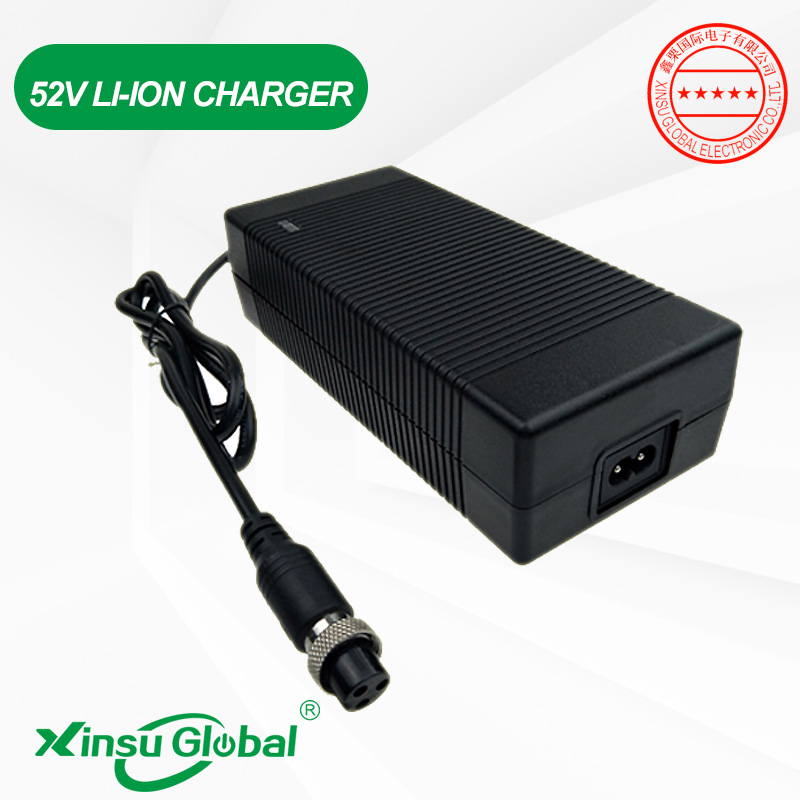

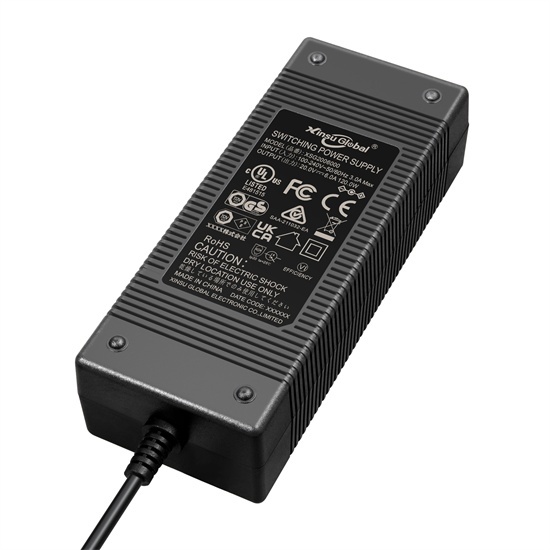

Product name : 52V lithium ion battery electric bike scooter charger 58.8V 2A

Product No. : XSG5882000

←[Previous Product]

Online Inquiry Email Us

Details:

1.52V lithium ion battery electric bike scooter charger 58.8V 2A
XSG5882000 UL PSE CE GS SAA KC AC charger adapter used for 14s lithium ion battery pack, medical robot, electric bike scooter.etc, fanless inside, high efficiency, more easy to carry

2. Electrical Performance：
Certificated by the safety certifications below:

Certifications	Country	Safety Standards
UL/CUL	USA/CA	UL/CSA60950-1,UL/CSA62368-1
LVD/GS	Germany	EN60950, EN62368 EN61558, EN60335
PSE	Japan	J-60950-1，J61558
FCC	USA	FCC Part 15 Sub-part B
CE EMC	Europe	EN55032, EN55024，EN55020 EN61000, EN55014
KC	Korea	K60950-1
SAA/RCM	Australia	AS/NZS 60950

3.Input Feature：
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：3A
Inrush Current： 60A
Efficiency higher than 87%，No-load input power dissipation 0.5W

4.Output Feature：58.8V2A lithium ion battery ac charger adapter

Charging Status	Charging Stage	Output current	Output voltage	LED indicator
Charging	Constant Current	2A	32.5V-58.8V	红灯
Charging	Constant Voltage	2A->0.2A	58.8V	红灯
Fully charge	Trickle Charging	0.2A->0	58.8V	绿灯

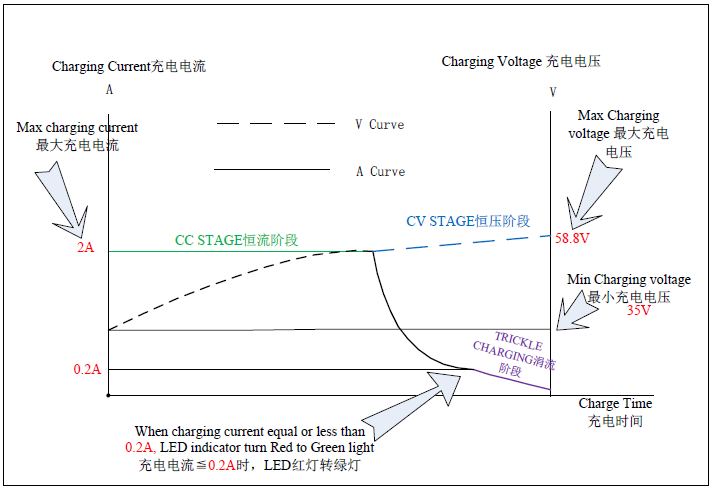

5. Charging Curve
58.8V 2A

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

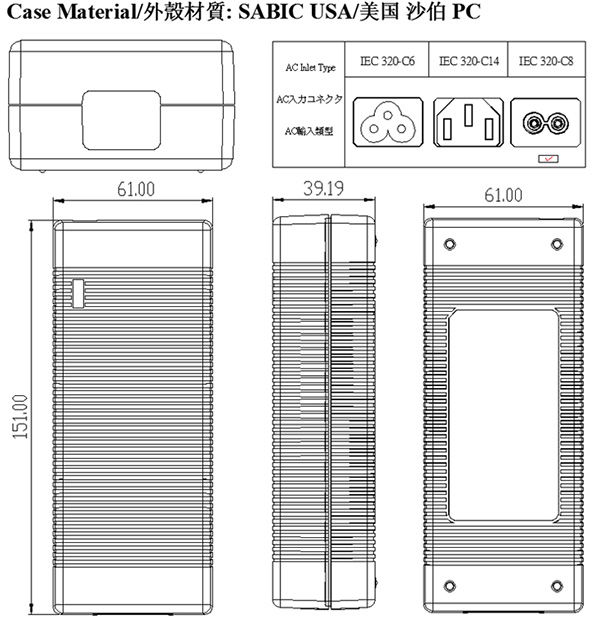

7. Dimensions：L151*W61*H40mm

8.Other 58.8V battery chargers

MODEL	INPUT	OUTPUT
MODEL	VAC	W	V	mA
XSG5880300	100～240	17.6	58.8	300
XSG5880400	100～240	23.5	58.8	400
XSG5880500	100～240	29.4	58.8	500
XSG5880600	100～240	35.3	58.8	600
XSG5880700	100～240	41.2	58.8	700
XSG5880800	100～240	47.0	58.8	800
XSG5880900	100～240	52.9	58.8	900
XSG5881000	100～240	58.8	58.8	1000
XSG5881100	100～240	64.7	58.8	1100
XSG5881250	100～240	73.5	58.8	1250
XSG5881500	100～240	88.2	58.8	1500
XSG5881750	100～240	102.9	58.8	1750
XSG5882000	100～240	117.6	58.8	2000
XSG5882250	100～240	132.3	58.8	2250
XSG5882500	100～240	147.0	58.8	2500
XSG5882750	100-240	161.7	58.8	2750
XSG5883000	100～240	176.4	58.8	3000
XSG5883250	100～240	191.1	58.8	3250
XSG5883500	100～240	205.8	58.8	3500
XSG5883700	100～240	217.6	58.8	3700
