Products > Li ion Battery Charger > 7.4V Li-ion battery charger 8.4V > UL cUL PSE CE GS KC 8.4V 1A desktop lithium ion battery camera charger

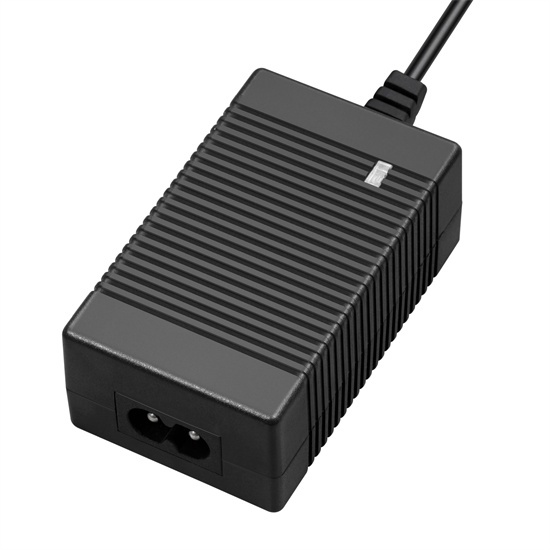

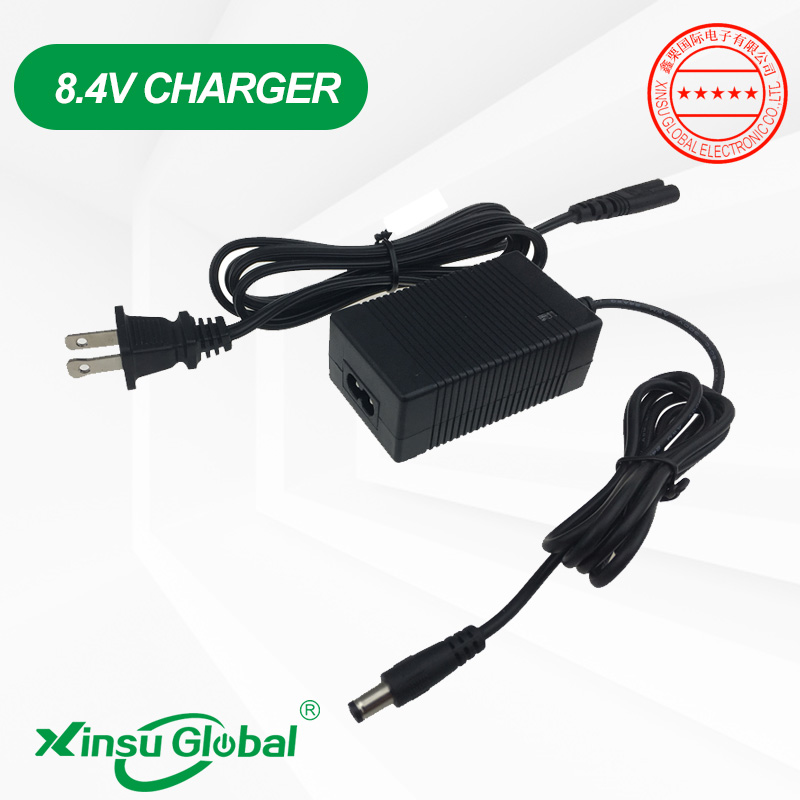

Product name : UL cUL PSE CE GS KC 8.4V 1A desktop lithium ion battery camera charger

Product No. : XSG0841000

←[Previous Product] [Next Product]→

Online Inquiry Email Us

Details:

1. UL cUL PSE CE GS KC 8.4V 1A desktop lithium ion battery camera charger：
8.4V 1A desktop lithium battery charger adapter used for 7.4V 2S li-ion battery pack, camera battery.etc
8.4V charger

2. Electrical Performance：
Certificated by the safety certifications below:

Certifications	Country	Safety Standards
UL/CUL	USA/CA	UL/CSA60950-1,UL/CSA62368-1
LVD/GS	Germany	EN60950, EN62368 EN61558, EN60335
PSE	Japan	J-60950-1，J61558
FCC	USA	FCC Part 15 Sub-part B
CE EMC	Europe	EN55032, EN55024，EN55020 EN61000, EN55014
KC	Korea	K60950-1
SAA/RCM	Australia	AS/NZS 60950
PSB	Singapore	IEC-61558-2-16

3.Input Feature：
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：0.6A
Inrush Current： 35A
Efficiency higher than 75.5%，No-load input power dissipation 0.3W

4.Output Feature：Output 8.4 volt 1 amp Li-ion battery AC charger adapter

Charging Status	Charging Stage	Output current	Output voltage	LED indicator
Charging	Constant Current	1A	5V-8.4V	红灯
Charging	Constant Voltage	1A->0.2A	8.4V	红灯
Fully charge	Trickle Charging	0.2A->0	8.4V	绿灯

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional), Anti-backflow protection

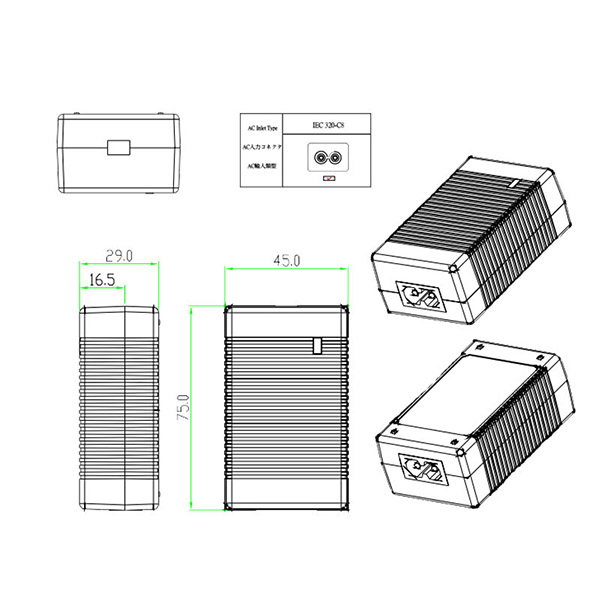

7. Dimensions：L75*W45*H29mm

8.Other 8.4V battery charger

MODEL	INPUT	OUTPUT
	VAC	W	V	mA
XSG0840300	100～240	2.5	8.4	300
XSG0840400	100～240	3.4	8.4	400
XSG0840500	100～240	4.2	8.4	500
XSG0840600	100～240	5.0	8.4	600
XSG0840700	100～240	5.9	8.4	700
XSG0840800	100～240	6.7	8.4	800
XSG0840900	100～240	7.6	8.4	900
XSG0841000	100～240	8.4	8.4	1000
XSG0841200	100～240	10.1	8.4	1200
XSG0841500	100～240	12.6	8.4	1500
XSG0842000	100～240	16.8	8.4	2000
XSG0842500	100～240	21.0	8.4	2500
XSG0843000	100～240	25.2	8.4	3000
XSG0843500	100～240	29.4	8.4	3500
XSG0844000	100～240	33.6	8.4	4000
XSG0844500	100～240	37.8	8.4	4500
XSG0845000	100～240	42.0	8.4	5000
XSG0845500	100～240	46.2	8.4	5500
XSG0846000	100～240	50.4	8.4	6000
XSG0846500	100～240	54.6	8.4	6500
XSG0847000	100～240	58.8	8.4	7000
XSG0847500	100～240	63.0	8.4	7500
XSG0848000	100～240	67.2	8.4	8000
XSG0848500	100～240	71.4	8.4	8500
XSG0849000	100～240	75.6	8.4	9000
XSG0849500	100～240	79.8	8.4	9500
XSG08410000	100～240	84.0	8.4	10000

9. Packing List
Carton:460*295*330mm
100PCS/CTN
10KG/CTN

8.4V1A charger lithium battery, used in 2S 7.4V lithium battery pack charging constant current constant voltage and trickle charging mode, with multiple protection mechanisms, over voltage protection, over current protection, short circuit protection, anti-reverse protection (optional) , Anti-backflow protection.

8.4V1A charger has UL, cUL, FCC, PSE, CE, GS, SAA, RCM, C-tick, KC, CCC safety certification. Widely used in camera batteries, robots, rechargeable flashlights, rechargeable helmets, batons, medical equipment, test instruments, etc.

Please contact us for more product information!
