Products > LiFePO4 Battery Charger > 12.8V LiFePO4 battery charger 14.6V > UK wall plug CE listed 14.6V 1.5A LiFePO4 battery charger
UK wall plug CE listed 14.6V 1.5A LiFePO4 battery charger
Product name : UK wall plug CE listed 14.6V 1.5A LiFePO4 battery charger
Product No. : XSG1461500UK
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 1. UK wall plug CE listed 14.6V 1.5A LiFePO4 battery charger：
UK Plug CE approved 12.8V LIFePo4 battery charger output 14.6Volt 1.5amp
2. Electrical Performance：
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1，J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024，EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature：
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：0.6A
Inrush Current： 35A
Efficiency higher than 81.5%，No-load input power dissipation 0.3W

4.Output Feature：UK wall plug Output 14.6V 1.5A, 3 stage trickle LiFePO4 battery charger with CE RoHS certifications
Charging Status Charging Stage Output current Output voltage LED indicator

Charging		 Constant Current 1.5A 8V-14.6V 红灯
Constant Voltage 1.5A->0.2A 14.6V 红灯
 Fully charge Trickle Charging 0.2A->0 14.6V 绿灯

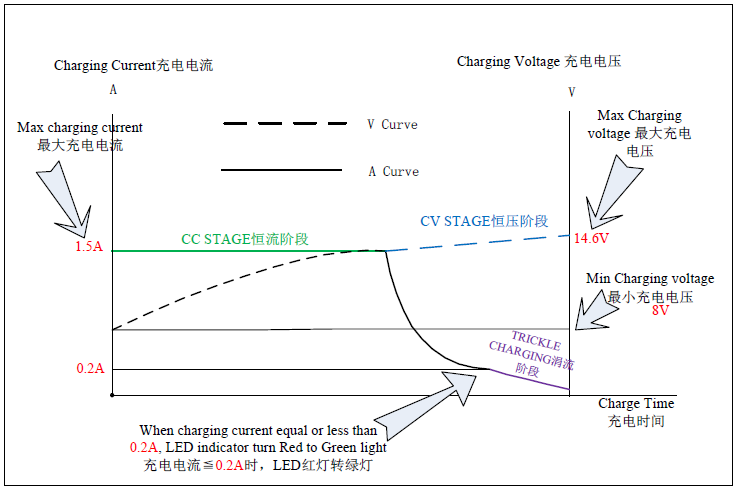

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

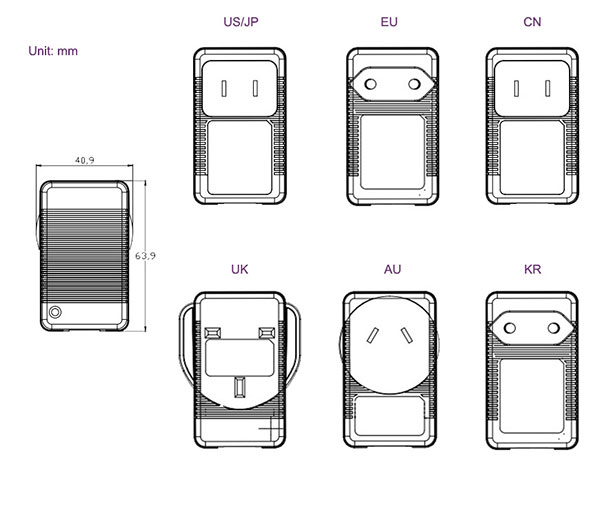

7. Dimensions：L72.3*W47.1*H30.5mm

8.Other 14.6V chargers
MODEL INPUT OUTPUT
VAC W V mA
XSG1460300 100～240 4.4 14.6 300
XSG1460400 100～240 5.8 14.6 400
XSG1460500 100～240 7.3 14.6 500
XSG1460600 100～240 8.8 14.6 600
XSG1460700 100～240 10.2 14.6 700
XSG1460800 100～240 11.7 14.6 800
XSG1460900 100～240 13.1 14.6 900
XSG1461000 100～240 14.6 14.6 1000
XSG1461500 100～240 21.9 14.6 1500
XSG1462000 100～240 29.2 14.6 2000
XSG1462500 100～240 36.5 14.6 2500
XSG1463000 100～240 43.8 14.6 3000
XSG1463500 100～240 51.1 14.6 3500
XSG1464000 100～240 58.4 14.6 4000
XSG1464450 100～240 65.0 14.6 4450
XSG1464500 100～240 65.7 14.6 4500
XSG1465000 100～240 73.0 14.6 5000
XSG1465500 100～240 80.3 14.6 5500
XSG1466000 100～240 87.6 14.6 6000
XSG1466500 100～240 94.9 14.6 6500
XSG1467000 100～240 102.2 14.6 7000
XSG1467500 100～240 109.5 14.6 7500
XSG1468000 100～240 116.8 14.6 8000
XSG1468500 100～240 124.1 14.6 8500
XSG1469000 100～240 131.4 14.6 9000
XSG1469500 100～241 138.7 14.6 9500
XSG14610000 100～240 146.0 14.6 10000
XSG14611000 100-240 160.6 14.6 11000
