Products > Lead Acid Battery Charger > 12V Lead-Acid battery charger 14.6V > PSE UL CUL CE GS SAA CCC KC 12V Lead-Acid battery charger 13.8V 14.6V 4A

Product name : PSE UL CUL CE GS SAA CCC KC 12V Lead-Acid battery charger 13.8V 14.6V 4A

Product No. : XSG1464000

←[Previous Product]

Online Inquiry Email Us

Details:

1. PSE UL CUL CE GS SAA CCC KC 12V Lead-Acid battery charger 13.8V 14.6V 4A：
12V 4A Lead-acid battery charger adapter used for 12V lead acid battery pack, used for the 12V portable lights,12V lead aicd electric scooter, 12V lead acid electric wheelchair.etc

2. Electrical Performance：
Certificated by the safety certifications below:

Certifications	Country	Safety Standards
UL/CUL	USA/CA	UL/CSA60950-1,UL/CSA62368-1
LVD/GS	Germany	EN60950, EN62368 EN61558, EN60335
PSE	Japan	J-60950-1，J61558
FCC	USA	FCC Part 15 Sub-part B
CE EMC	Europe	EN55032, EN55024，EN55020 EN61000, EN55014
KC	Korea	K60950-1
SAA/RCM	Australia	AS/NZS 60950

3.Input Feature：
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：1.3A
Inrush Current： 60A
Efficiency higher than 87%，No-load input power dissipation 0.5W

4.Output Feature：Output 14.6V Lead-acid battery 4A AC charger adapter

Charging Status	Charging Stage	Output current	Output voltage	LED indicator
Charging	Constant Current	4A	9V-14.6V	红灯
Charging	Constant Voltage	4A->1.3A	14.6V	红灯
Fully charge	Trickle Charging	1.3A->0	14.6V	绿灯

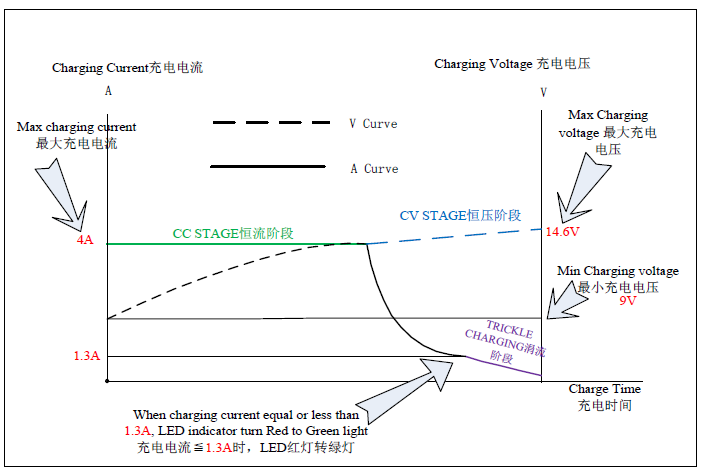

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

7. Dimensions：L116*W52*H34mm

8. Other 14.6V chargers

MODEL	INPUT	OUTPUT
MODEL	VAC	W	V	mA
XSG1460300	100～240	4.4	14.6	300
XSG1460400	100～240	5.8	14.6	400
XSG1460500	100～240	7.3	14.6	500
XSG1460600	100～240	8.8	14.6	600
XSG1460700	100～240	10.2	14.6	700
XSG1460800	100～240	11.7	14.6	800
XSG1460900	100～240	13.1	14.6	900
XSG1461000	100～240	14.6	14.6	1000
XSG1461500	100～240	21.9	14.6	1500
XSG1462000	100～240	29.2	14.6	2000
XSG1462500	100～240	36.5	14.6	2500
XSG1463000	100～240	43.8	14.6	3000
XSG1463500	100～240	51.1	14.6	3500
XSG1464000	100～240	58.4	14.6	4000
XSG1464450	100～240	65.0	14.6	4450
XSG1464500	100～240	65.7	14.6	4500
XSG1465000	100～240	73.0	14.6	5000
XSG1465500	100～240	80.3	14.6	5500
XSG1466000	100～240	87.6	14.6	6000
XSG1466500	100～240	94.9	14.6	6500
XSG1467000	100～240	102.2	14.6	7000
XSG1467500	100～240	109.5	14.6	7500
XSG1468000	100～240	116.8	14.6	8000
XSG1468500	100～240	124.1	14.6	8500
XSG1469000	100～240	131.4	14.6	9000
XSG1469500	100～241	138.7	14.6	9500
XSG14610000	100～240	146.0	14.6	10000
XSG14611000	100-240	160.6	14.6	11000

9. Packing List
Carton:430*380*350mm
50PCS/CTN
18.3KG/CTN

XSG1464000 12V 4A Lead-acid battery charger output 14.6V 13.8V 4A.Constant current to constant voltage and trickle current mode.
Multi safetguards: OVP, CVP, SCP, reverse protection (Optional)and Anti-backflow protection .Without compromising battery life, ensure that the battery can be fully charged.
12V4A Lead acid battery charger with various safety certifications, CB report, UL, cUL, FCC, PSE, CE, GS, SAA, RCM, C-tick, KC, CCC.
Please email us for further details.
12V 4A lead acid battery charger
12V4A charger
13.8V 4A battery charger
