UL CUL FCC PSE CE GS SAA ONEWHEEL 63V 1.3A lithium ion battery charger GX12 2pin
UL CUL FCC PSE CE GS SAA ONEWHEEL 63V 1.3A lithium ion battery charger GX12 2pin UL CUL FCC PSE CE GS SAA ONEWHEEL 63V 1.3A lithium ion battery charger GX12 2pin UL CUL FCC PSE CE GS SAA ONEWHEEL 63V 1.3A lithium ion battery charger GX12 2pin UL CUL FCC PSE CE GS SAA ONEWHEEL 63V 1.3A lithium ion battery charger GX12 2pin
Product name : UL CUL FCC PSE CE GS SAA ONEWHEEL 63V 1.3A lithium ion battery charger GX12 2pin
Product No. : XSG6301300
←[Previous Product]              [Next Product]→
Online Inquiry

  Details:
 1.UL CUL FCC PSE CE GS SAA ONEWHEEL 63V 1.3A lithium ion battery charger GX12 2pin
UL CUL PSE CE GS SAA KC 15S NMC 63V battery 1.3A AC wall charger adapter used for 15s lithium ion battery pack, electric scooter, electric bike without a fan in it. higher efficiency and reliable
Onewheel Pint charger
2. Electrical Performance：
Certificated by the safety certifications below:
Certifications Country Safety Standards
UL/CUL USA/CA UL/CSA60950-1,UL/CSA62368-1
LVD/GS Germany EN60950, EN62368
EN61558, EN60335
PSE Japan J-60950-1，J61558
FCC USA FCC Part 15 Sub-part B
CE EMC Europe EN55032, EN55024，EN55020
EN61000, EN55014
KC Korea K60950-1
SAA/RCM Australia AS/NZS 60950













3.Input Feature：
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：3A
Inrush Current： 60A
Efficiency higher than 87%，No-load input power dissipation 0.5W

4.Output Feature：63V1.3A lithium battery ac charger adapter
Charging Status Charging Stage Output current Output voltage LED indicator

Charging		 Constant Current 1.3A 37.5V-63V 红灯
Constant Voltage 1.3A->0.2A 63V 红灯
 Fully charge Trickle Charging 0.2A->0 63V 绿灯

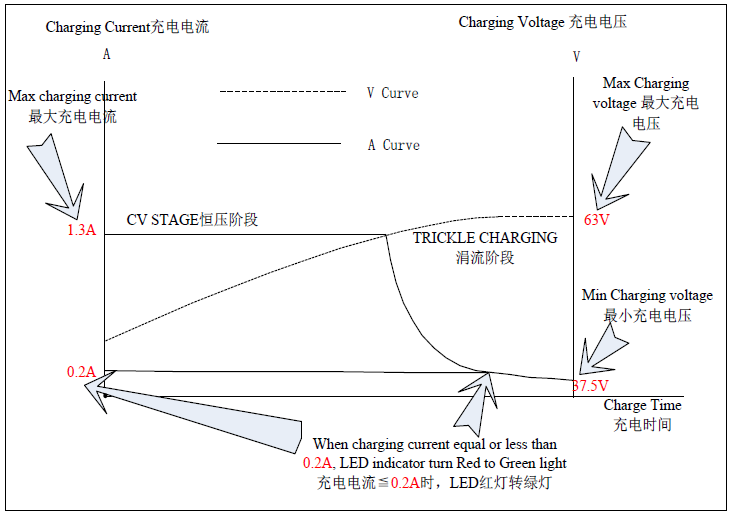

5. Charging Curve

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

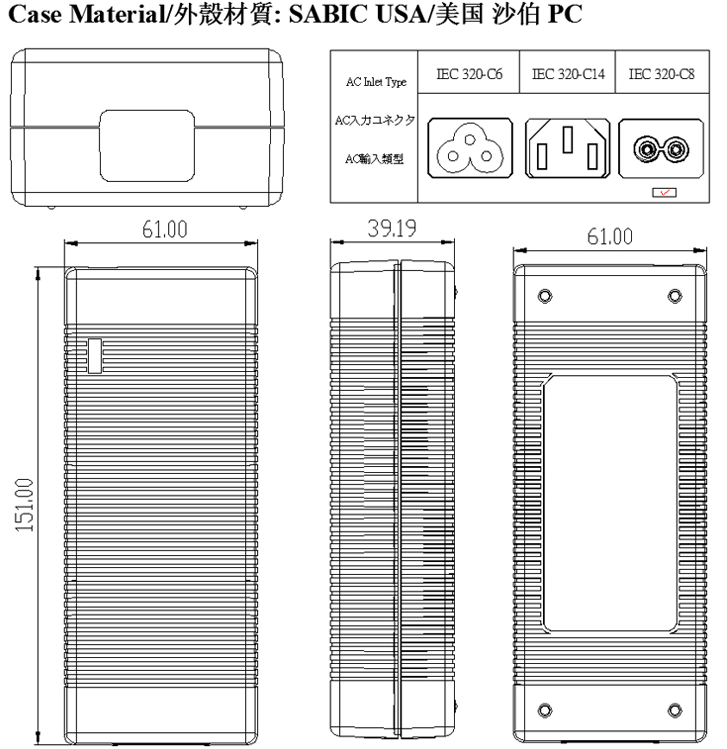

7. Dimensions：L151*W61*H40mm

Other 63V lithium ion battery chargers:
MODEL INPUT OUTPUT
VAC W V mA
XSG6300300 100～240 18.9 63 300
XSG6300400 100～240 25.2 63 400
XSG6300500 100～240 31.5 63 500
XSG6300630 100～240 37.8 63 600
XSG6300700 100～240 44.1 63 700
XSG6300800 100～240 50.4 63 800
XSG6300900 100～240 56.7 63 900
XSG6301000 100～240 63.0 63 1000
XSG6301100 100～240 69.3 63 1100
XSG6301250 100～240 78.8 63 1250
XSG6301500 100～240 94.5 63 1500
XSG6301750 100～240 110.3 63 1750
XSG6302000 100～240 126.0 63 2000
XSG6302250 100～240 141.8 63 2250
XSG6302500 100～240 157.5 63 2500
XSG6302750 100-240 173.3 63 2750
XSG6303000 100～240 189.0 63 3000
XSG6303250 100～240 204.8 63 3250
