Products > Li ion Battery Charger > 24V Li-ion battery charger 29.4V > CB UL CUL FCC PSE CE GS SAA KC 29.4V 7A CLASS I Li-ion battery charger adapter

Product name : CB UL CUL FCC PSE CE GS SAA KC 29.4V 7A CLASS I Li-ion battery charger adapter

Product No. : XSG2947000MM

←[Previous Product]

Online Inquiry Email Us

Details:

1.CB UL CUL FCC PSE CE GS SAA KC 29.4V 7A CLASS I Li-ion battery charger adapter
29.4V 7A AC charger adapter used for 7s lithium ion battery pack, battery power tools, robot, electric scooter bike, fast charger

2. Electrical Performance：
Certificated by the safety certifications below:

Certifications	Country	Safety Standards
UL/CUL	USA/CA	UL/CSA60950-1,UL/CSA62368-1
LVD/GS	Germany	EN60950, EN62368 EN61558, EN60335
PSE	Japan	J-60950-1，J61558
FCC	USA	FCC Part 15 Sub-part B
CE EMC	Europe	EN55032, EN55024，EN55020 EN61000, EN55014
KC	Korea	K60950-1
SAA/RCM	Australia	AS/NZS 60950

3.Input Feature：
Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：47Hz-63Hz
Input Current：3A
Inrush Current： 60A
Efficiency higher than 87%，No-load input power dissipation 0.5W

4.Output Feature：29.4V7A lithium battery ac charger adapter

Charging Status	Charging Stage	Output current	Output voltage	LED indicator
Charging	Constant Current	7A	17.5V-29.4V	红灯
Charging	Constant Voltage	1A->0.7A	29.4V	红灯
Fully charge	Trickle Charging	0.7A->0	29.4V	绿灯

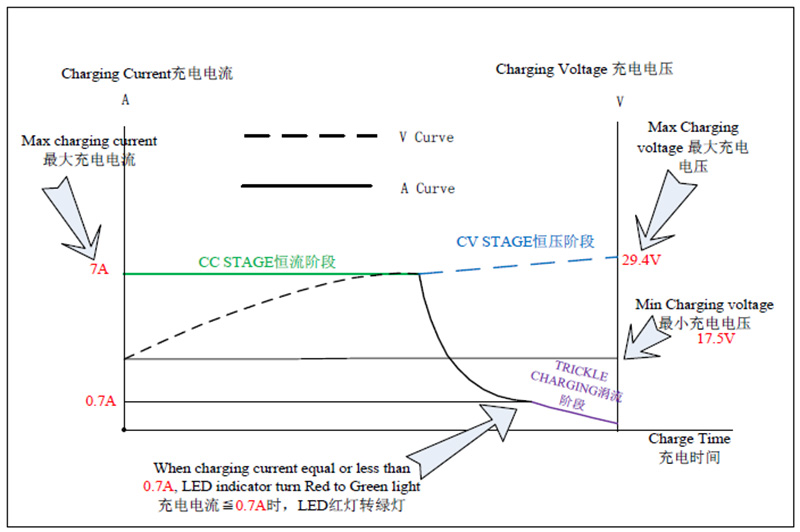

5. Charging Curve
29.4V 7A charger

6. Protection Feature
Over current protection, Over voltage protection, Short circuit protection, Reverse polarity protection(Optional)

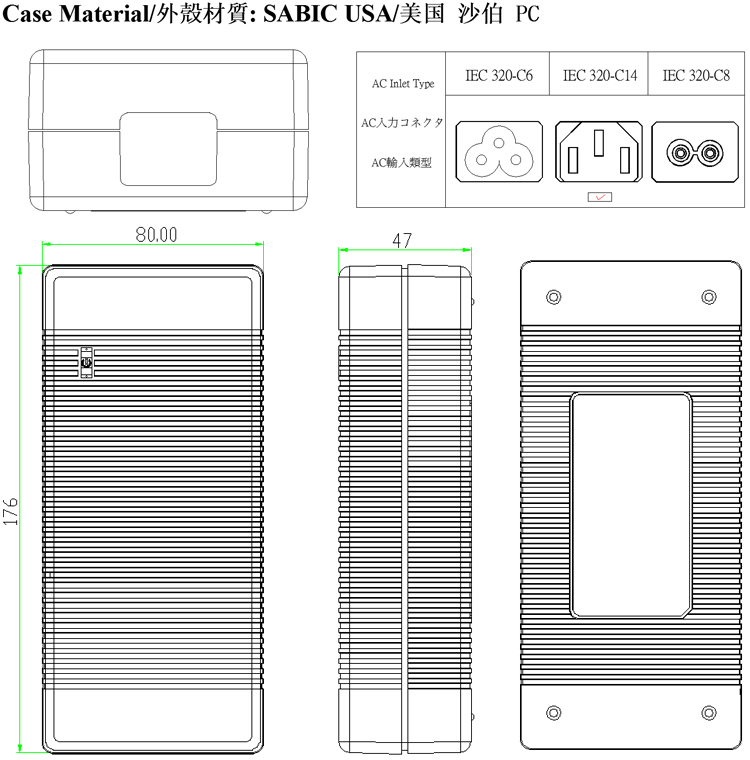

7. Dimensions：L176*W80*H47mm

8. Other 29.4V chargers

MODEL	INPUT	OUTPUT
MODEL	VAC	W	V	mA
XSG2940300	100～240	8.8	29.4	300
XSG2940400	100～240	11.8	29.4	400
XSG2940500	100～240	14.7	29.4	500
XSG2940600	100～240	17.6	29.4	600
XSG2940700	100～240	20.6	29.4	700
XSG2940800	100～240	23.5	29.4	800
XSG2940900	100～240	26.5	29.4	900
XSG2941000	100～240	29.4	29.4	1000
XSG2941250	100～240	36.8	29.4	1250
XSG2941500	100～240	44.1	29.4	1500
XSG2941750	100～240	51.5	29.4	1750
XSG2942000	100～240	58.8	29.4	2000
XSG2942500	100～240	73.5	29.4	2500
XSG2943000	100～240	88.2	29.4	3000
XSG2943500	100～240	102.9	29.4	3500
XSG2944000	100～240	117.6	29.4	4000
XSG2944500	100～240	132.3	29.4	4500
XSG2945000	100～240	147.0	29.4	5000
XSG2945500	100～240	161.7	29.4	5500
XSG2946000	100～240	176.4	29.4	6000
XSG2946500	100～240	191.1	29.4	6500
XSG2947000	100～240	205.8	29.4	7000
XSG2947450	100～240	219.0	29.4	7450

9. Factory and workshop

Xinsu Global

10. Production test equipment

11. Producton process
production process

12. Exhibitions

29.4V lithium CLASS I charger used for 7S 24V lithium battery pack, The two-color LED indicator shows the charging status. With multiple protection mechanisms, over-current protection, over-voltage protection, short-circuit protection, polarity protection and other features.

Charging is fast, safe and reliable. It has UL, cUL, FCC, PSE, CE, GS, KC, CCC, SAA and other international safety certifications.
